Product Information

Rated Use Voltage =  240V AC

Momentary Pushbutton Current = 3A

Estop Pushbutton Current = 10A

Operating Type = Momentary  (Estop latching)

Contact Resistance = <50m Ohm

Insulation Resistance = >100M ohm

Withstand  Voltage =  AC2.5kV/min

Mechanical Life =  > 1 million cycle

Electrical  Life =  > 1 million cycle

Wire Gauge = 1mm (18 AWG)

Protection = IP65

Rated Insulation Voltage = 600V AC

Operating Temperature = -20~+55℃

Ambient Humidity =  45~85％
Cable Length = 1m, 2m, 3m

Warranty  =  2 year

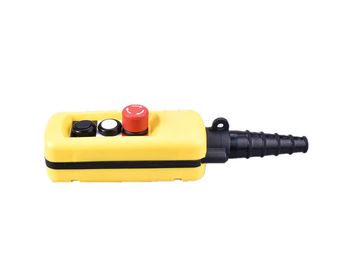

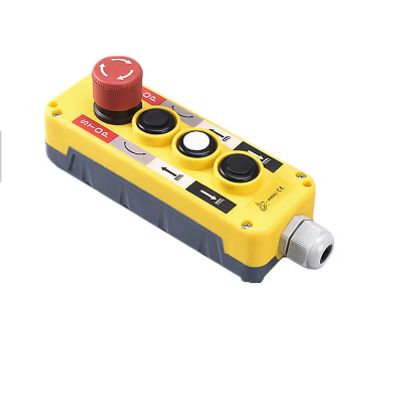

A rugged and reliable solution designed to provide seamless control and efficient operation of industrial machinery and processes. This versatile pendant control is engineered to meet the demanding needs of industrial environments, offering a comprehensive range of control options.

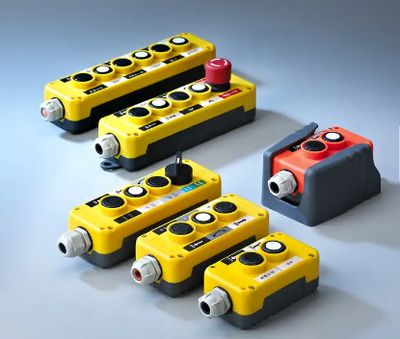

The Industrial Control Switch Box is equipped with a user-friendly interface, featuring clearly labelled switches, buttons, and indicators for easy operation and monitoring. With its modular design, the switch box allows for flexible configuration, accommodating various control functions such as start/stop, speed adjustment, direction control, and emergency shutdown. Its robust construction and high-quality materials make it suitable for use in harsh industrial settings, where it can withstand extreme temperatures, vibrations, and moisture.

Our Products are designed to adhere to strict industry standards, including GB/T14048.1 and IEC60947-5-1. These standards ensure compliance with rigorous quality and safety requirements. In addition, our products are certified with CE, ISO9001, ROHS, and UL certifications.
