In stock

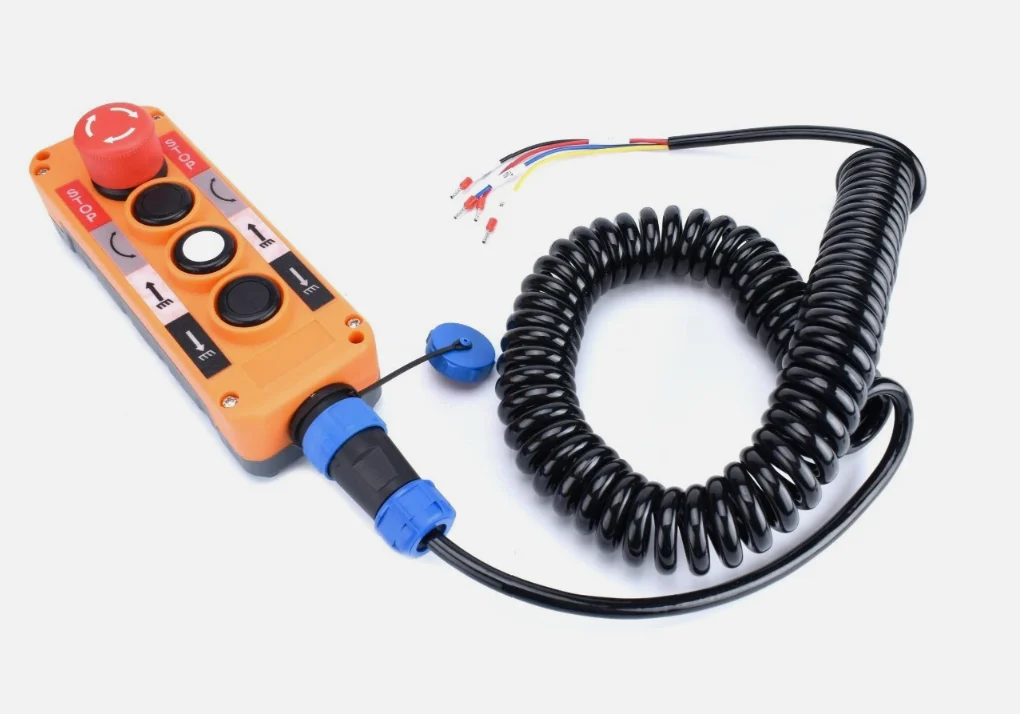

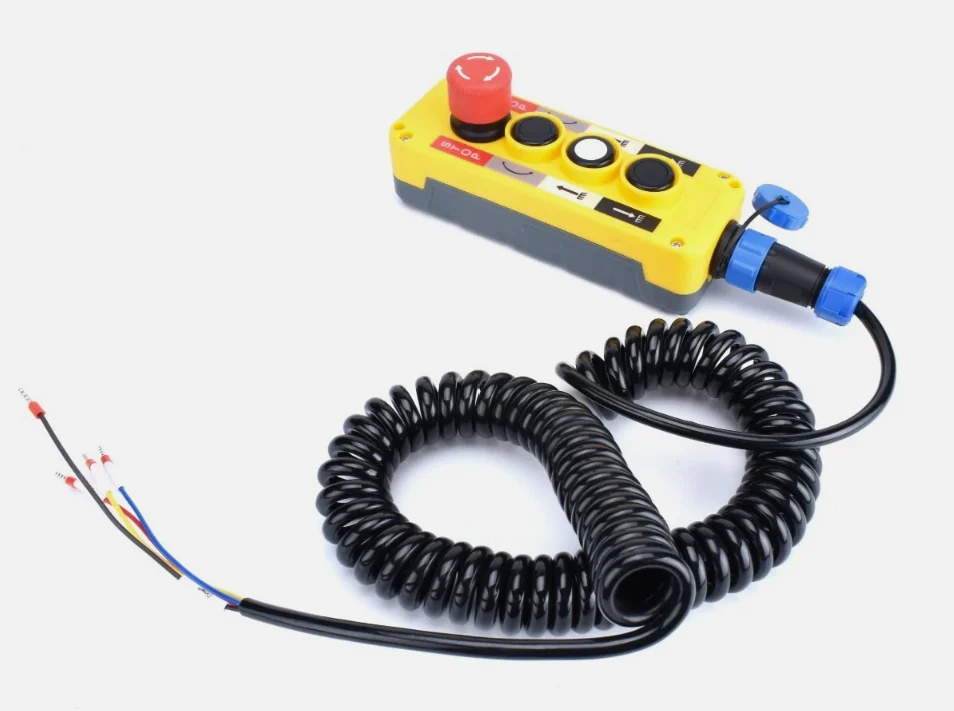

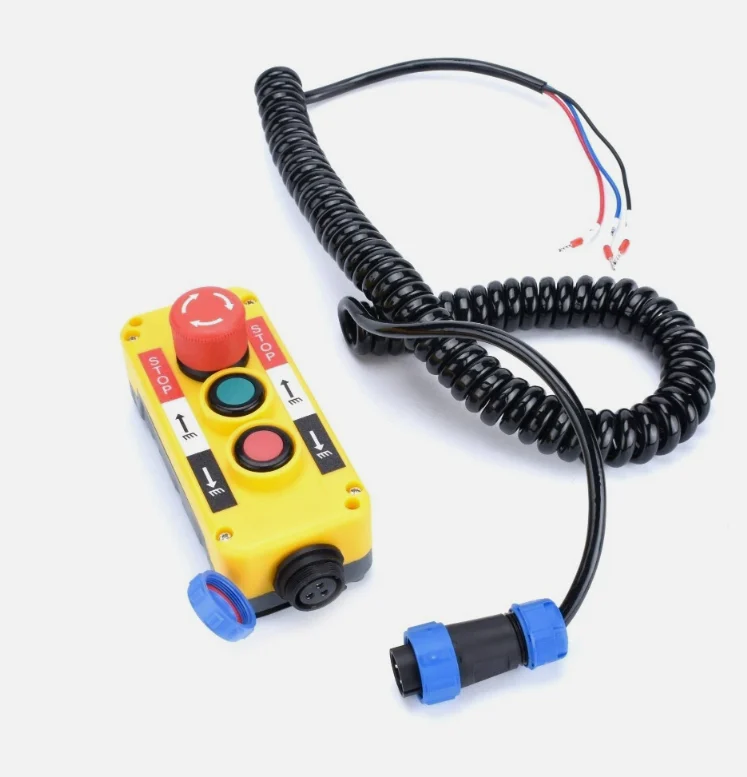

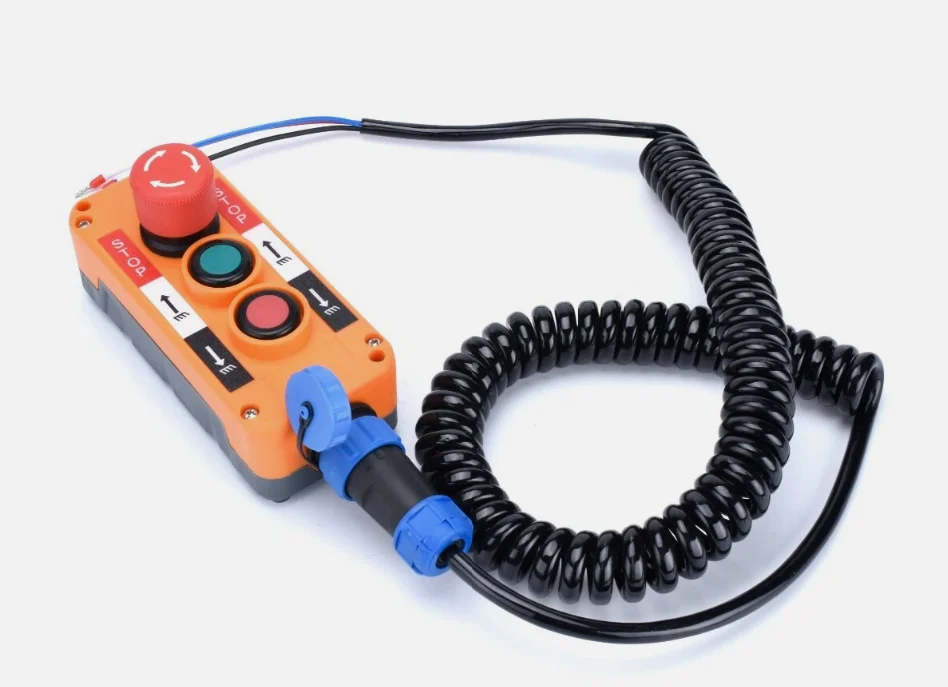

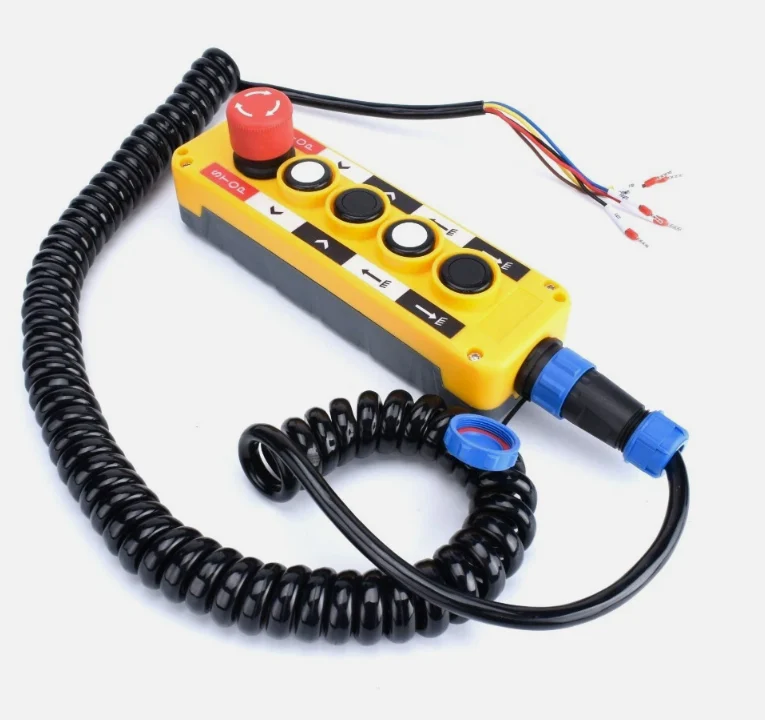

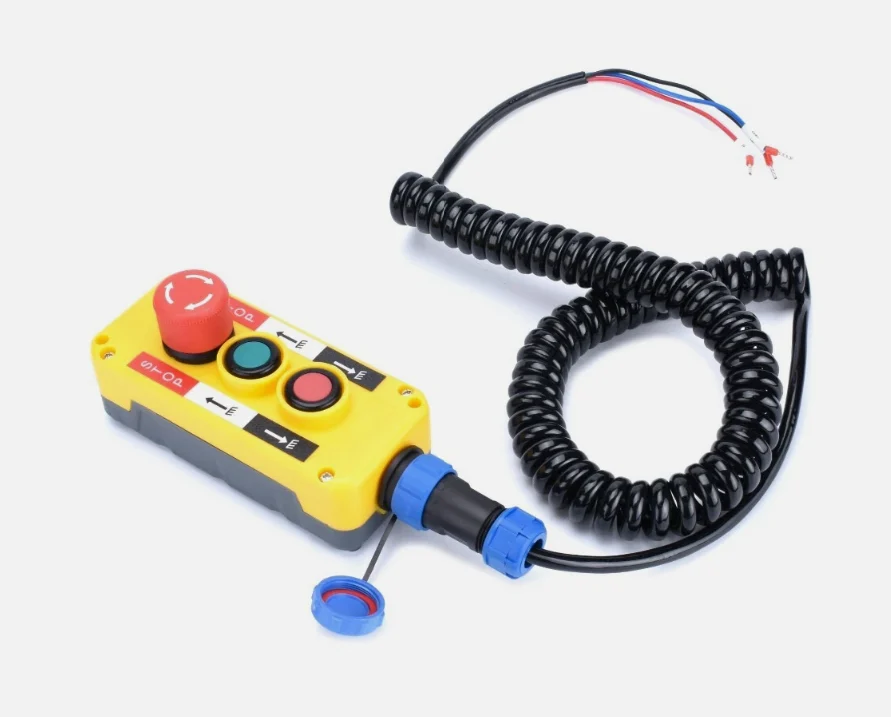

3 4 5 Button Hoist Pendant Control Station Estop – Pendant Mount Disconnect
Price range: $112.00 through $146.00
A durable pendant control station with Emergency Stop, designed for hoists, cranes and other machinery. Features a removable cable connection directly at the pendant, allowing the control cable to be easily detached for simpler pendant replacement and maintenance. Ideal for new installations or replacement applications.
- Colour Housing: Yellow, Orange
- Emergency Stop: Yes
- Controller Cable Length: 3m
- Adaptor cable length: 1m
- Operation Type: Momentary (excluding Emergency Stop)
- Pushbutton Voltage Rating 240 Vac
- Momentary Pushbutton Current Rating 3A
- Emergency Stop Pushbutton Current Rating 10A
- Degree of Protection: IP65
- Contact Material: Silver Alloy
- Standards: EN 60947-5-1
- Single stage pushbuttons
- Durable Case
- Available in 3, 4, 5 buttons configuration.
- Built in hook for storage (universal holder wall mount PC-10XDL-EPC - available separately. Search item "204677916868")
Description
This hoist pendant control station combines momentary pushbuttons with an emergency stop and a removable cable connection at the pendant. The pendant-mounted disconnect allows the cable to be detached for pendant replacement and maintenance.
- Available in 3-, 4- and 5-button configurations
- IP65 housing
- 3 m controller cable and 1 m adaptor cable
- Single-stage momentary operation, excluding the emergency stop
Additional information
| Colour | Orange, Yellow |
|---|---|
| Model | 3 Button, 4 Button, 5 Button |
